High-energy centrifugal finishing methods were originally developed for ultra-soothing and fine finishing of smaller precision parts. The high-energy momentum of abrasive and polishing materials within these systems permitted the use of smaller dimensioned media that could access fine features and intricate geometries of some smaller parts. In these types of operations, several different cycles using successively finer abrasive materials are used to produce very fine finishes, in some cases as low as one micro-inch Ra. This type of finishing is used for both decorative/cosmetic effects and for producing functional finishes to improve the performance and service life of parts in a wide variety of demanding industrial applications.
For additional information, technical assistance or help in arranging for free sample processing of your parts contact: Dave Davidson | See also: dryfinish.wixsite.com/iso-finish
This slideshow requires JavaScript.

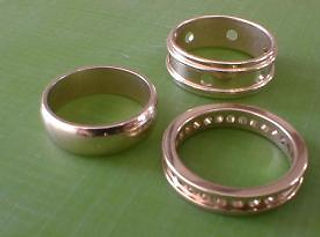

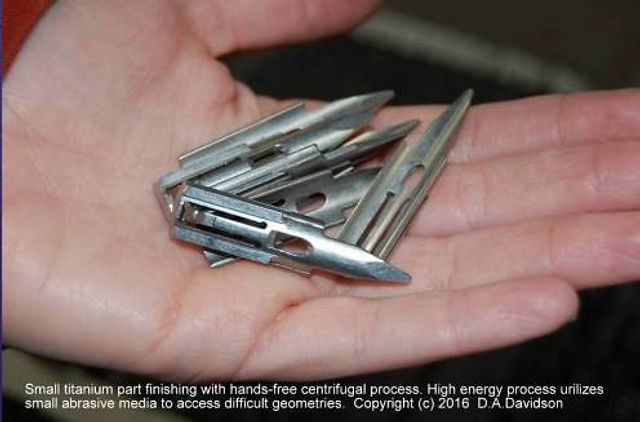

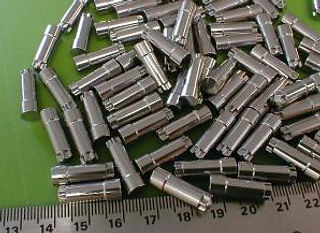

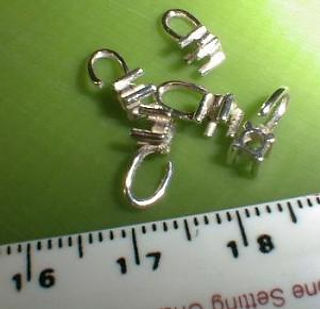

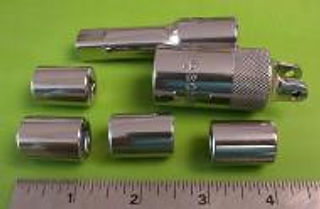

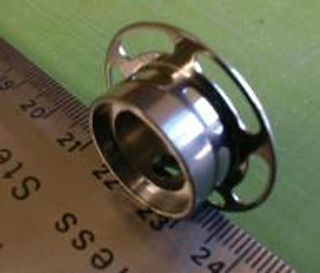

A wide variety of parts from various industries can be finished with centrifugal micro-finishing methods in equipment such as that shown below. For free sample finishing of your parts, technical assistance as well as contract finishing or processing equipment information contact:
Dave Davidson | dryfinish@gmail.com | 509.230.6821 | http://dryfinish.wordpress.com FREE SAMPLE PROCESSING | EQUIPMENT | CONTRACT FINISHING
A model HZ-85 machine with insert dividers used to keep parts isolated from each other while centrifugal processing in order to avoid part-on-part contact.
Mass Finishing technology for deburring, finishing and polishing of machined and manufactured parts and components
Centrifugal isotropic Finishing
Centrifugal Isotropic Finishing (CIF) is a high-energy finishing method, which has come into widespread acceptance in the last few years. Although not nearly as universal in application as vibratory finishing, a long list of important CBF applications have been developed in the last few decades.
Similar in some respects to barrel finishing, in that a drum-type container is partially filled with media and set in motion to create a sliding action of the contents, CBF is different from other finishing methods in some significant ways. Among these are the high pressures developed in terms of media contact with parts, the unique sliding action induced by rotational and centrifugal forces, and accelerated abrading or finishing action. As is true with other high energy processes, because time cycles are much abbreviated, surface finishes can be developed in minutes, which might tie up conventional equipment for many hours.
Centrifugal Barrel Finishing principles – high-intensity finishing is performed with barrels mounted on the periphery of a turret. The turret rotates providing the bulk of the centrifugal action, the barrels counter-rotate to provide the sliding abrasive action on parts.
The principle behind CBF is relatively straightforward. Opposing barrels or drums are positioned circumferentially on a turret. (Most systems have either two or four barrels mounted on the turret; some manufacturers favor a vertical and others a horizontal orientation for the turret.) As the turret rotates at high speed, the barrels are counter-rotated, creating very high G-forces or pressures, as well as considerable media sliding action within the drums. Pressures as high as 50 Gs have been claimed for some equipment. The more standard equipment types range in size from 1 ft3 (30 L) to 10 ft3, although much larger equipment has been built for some applications.
Media used in these types of processes tend to be a great deal smaller than the common sizes chosen for the barrel and vibratory processes. The smaller media, in such a high-pressure environment, are capable of performing much more work than would be the case in lower energy equipment. They also enhance access to all areas of the part and contribute to the ability of the equipment to develop very fine finishes. In addition to the ability to produce meaningful surface finish effects rapidly, and to produce fine finishes, CBF has the ability to impart compressive stress into critical parts that require extended metal fatigue resistance. Small and more delicate parts can also be processed with confidence, as the unique sliding action of the process seems to hold parts in position relative to each other, and there is generally little difficulty experienced with part impingement. Dry process media can be used in certain types of equipment and is useful for light deburring, polishing, and producing very refined isotropic super-finishes.
Below are some process video footage demonstrations of high-speed centrifugal isotropic finishing. These automated edge and surface finishing methods are capable of producing very refined low micro-inch surfaces that can improve functional part performance and service life.
